    Backup & Disaster Recovery appliance 1500

    • Summary:Specifications and features of the Backup & Disaster Recovery appliance — model 1500.
    • 1 min read

    Not supported. Not available for purchase.

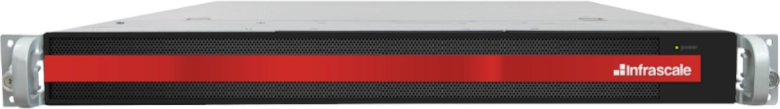

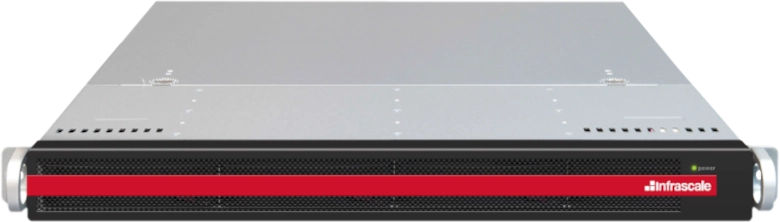

    Appliance view 1 Appliance view 2


    End-of-life
    End of sales Dec 31, 2016
    End of hardware serviceability 1 2 Dec 31, 2020
    End of software support 1 Dec 31, 2021
    Processor
    Model Intel Xeon E3-1275
    Base frequency 3.4 GHz
    Number of cores 4
    Upgrade N/A
    Memory
    Size 16 GB
    Type DDR3
    Frequency 1600 MHz
    Upgrade N/A
    Storage
    Catalog drive capacity 180 GB, SSD
    Data drive capacity (raw) 4 TB, HDD, 7200 rpm; or
    8 TB, HDD, 7200 rpm; or
    12 TB, HDD, 7200 rpm; or
    16 TB, HDD, 7200 rpm
    RAID level 5
    RAID capacity (total) 2 TB, or
    4 TB, or
    6 TB, or
    8 TB
    RAID capacity (usable) 1.86 TB, or
    3.72 TB, or
    5.58 TB, or
    7.45 TB
    Hot-swap drive bays 4
    Ports
    Ethernet 2 × 1 GbE
    IPMI Yes
    Cooling
    Processor N/A
    Chassis 3 fans @ 13,000 rpm each
    Power supply
    Output 350 W
    Voltage 100–240 V
    Frequency 50–60 Hz
    Physical specs
    Chassis 1U
    Width 17.2 in.
    Depth 19.85 in.
    Height 1.7 in.
    Weight 23 lb. (case)

    1. Unless there is an active, previously signed support contract. ↩ ↩2

    2. Hardware support may be limited if replacement parts are not commercially available. ↩
