Backup & Disaster Recovery appliance 1260

Not available for purchase. Supported in terms of both hardware and software.

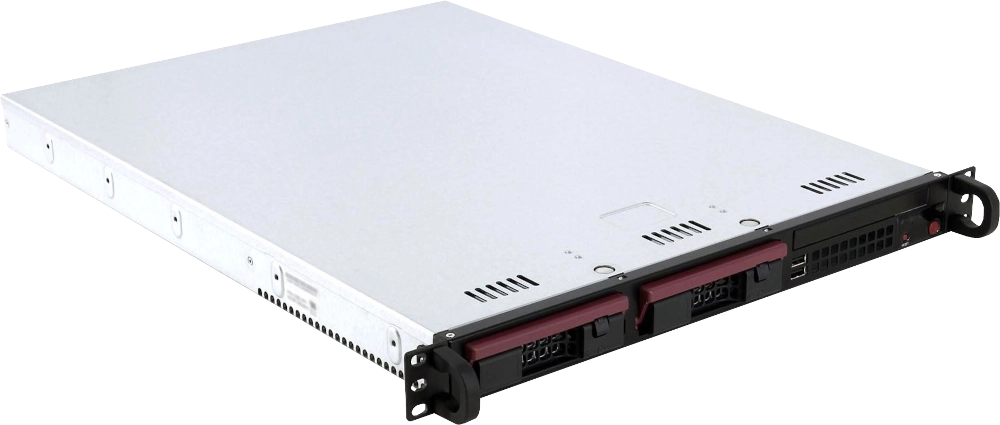

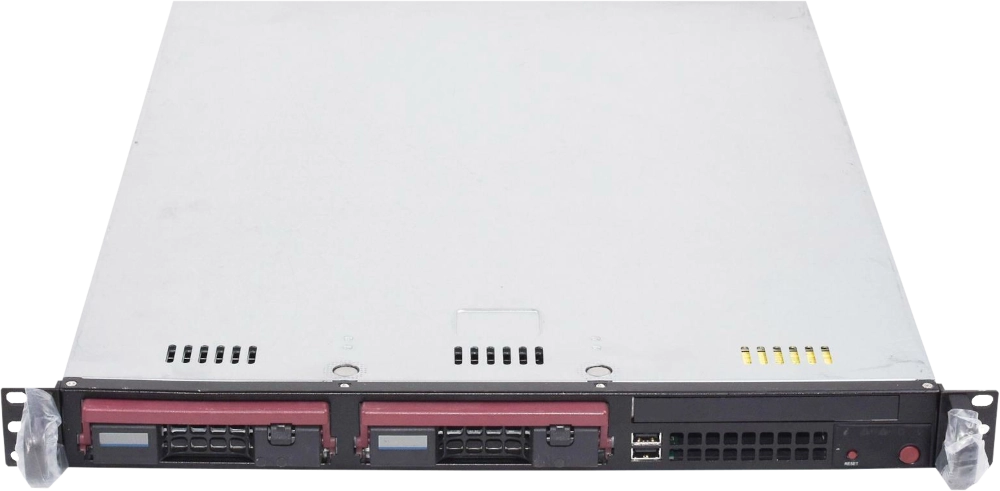

Appliance view 1 Appliance view 2


End-of-life
End of sales May 31, 2021
Hardware warranty 1 Standard – 3 years from the date of purchase.
Extended – 5 years from the date of purchase.
End of software support 2 Dec 31, 2027
Processor
Model Intel Core i3-8100
Base frequency 3.6 GHz
Number of cores 4
Upgrade N/A
Memory
Size 16 GB
Type DDR4, ECC
Frequency 2666 MHz
Upgrade N/A
Storage
Catalog drive capacity 240 GB, SSD
Data drive capacity (raw) 4 TB, HDD, 7200 rpm; or
8 TB, HDD, 7200 rpm; or
12 TB, HDD, 7200 rpm
RAID level 1
RAID capacity (total) 2 TB, or
4 TB, or
6 TB
RAID capacity (usable) 1.86 TB, or
3.72 TB, or
5.58 TB
Hot-swap drive bays 2
Ports
Ethernet 2 × 1 GbE
IPMI Yes
Cooling
Processor Passive heat sink
Chassis 2 fans @ 5000 rpm each
Power supply
Output 350 W
Voltage 100–240 V
Frequency 50–60 Hz
Physical specs
Chassis 1U
Width 16.8 in.
Depth 22.6 in.
Height 1.7 in.
Weight 27 lb. (case)
  1. Hardware warranty applies as follows:

    • If warranty is active, we replace hardware parts at our expense.

    • If warranty has ended, but hardware parts are still commercially available, we may replace them at your expense (including shipping).

    • If warranty has ended and hardware parts are not commercially available, we recommend hardware refresh.

  2. Unless there is an active, previously signed support contract.
