Microsoft Exchange Server backup and recovery

On this page


  • Microsoft Exchange Server 2010, 2013, or 2016

  • Credentials of a Windows account that has permissions to back up Microsoft Exchange databases

  • Online Backup and Recovery Manager (OBRM) must be installed on the same machine where Microsoft Exchange Server is installed

  • OBRM must run with administrator privileges (Run as administrator)

Back up Exchange databases

After OBRM v5.12+ installed and the Exchange databases exist on the machine, the backup procedure can be started.

  1. Open OBRM.

  2. Click Manage (Manage button) against Microsoft Exchange Backup.

    The application will require credentials for Exchange Management Console.

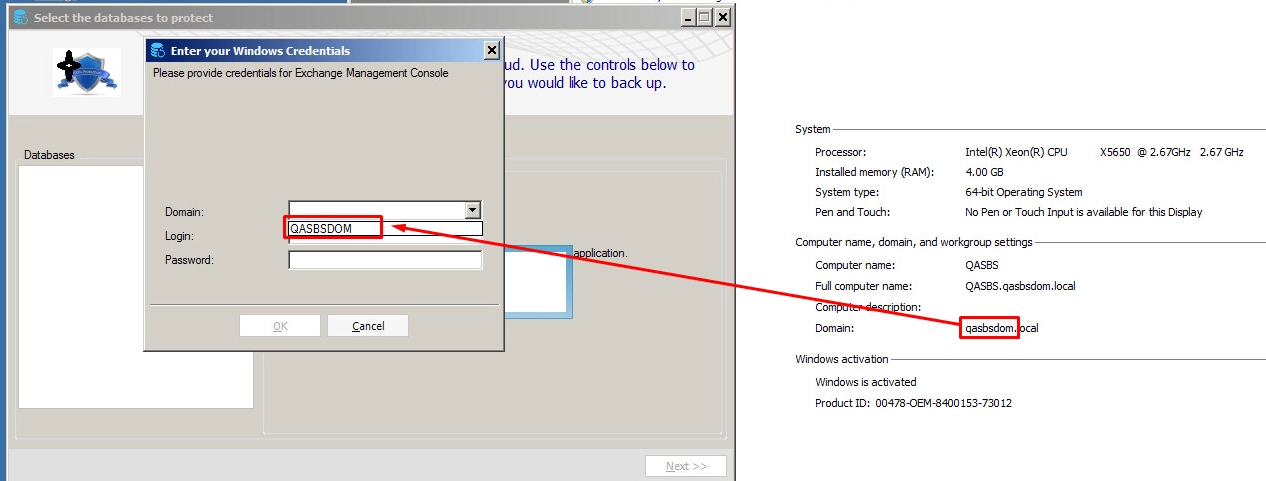

  3. Choose the Exchange machine domain from the drop-down menu and enter the appropriate credentials.

    Management Console credentials

    If the credentials are correct, the list of Exchange databases available for backup will be shown.

Database selection, retention policy and authentication policies

  1. Select databases for backup.

    Select databases to back up

  2. Specify the settings for each selected database:

    • cloud retention policy for Exchange backups (full and incremental backups)—how long the backups should be stored in the cloud

    • store the last copy of an Exchange database locally at “Temp folder path” (may be needed for an urgent restore if there are problems with Live database)

    • “Temp folder path” that is used to store Exchange database file (.edb) and logs created by Exchange VSS writer by request from OBRM application. It is also used to store the latest copy of Exchange database locally if the option is checked. The folder may be either a local one or located on a network folder\NAS in the local network. The size of the database should be taken into consideration when choosing the Temp folder. Minimum required free space for Temp folder is the size of the database (or databases if the same folder is configured for several of them):

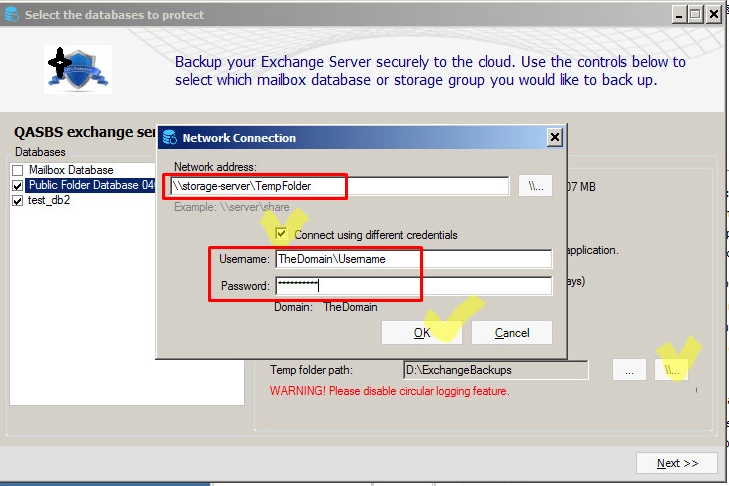

      When connecting to a Network folder, please, enter the appropriate Windows credentials to access this folder. The Windows user should have the full permissions for this folder (to be able to read/write/modify/delete files).

      Network connection

      Also, warnings may appear that are related to Exchange Server configuration, for example “Please disable circular logging feature”. With this feature enabled, incremental backups will not run (consult the Microsoft knowledge base article for further details).

      After Temp folders are chosen for all checked databases, Next will become active.

  3. Click Next to configure the backup schedule.

Scheduling options

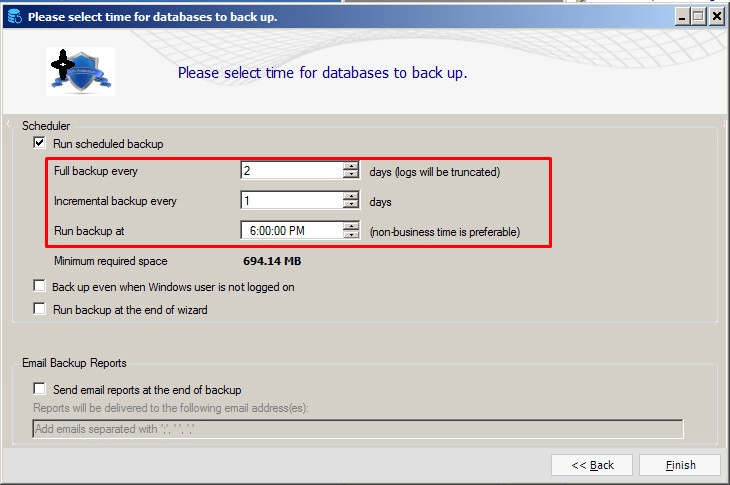

These are default scheduling options for Exchange database backups.

The backup schedule is configured for all checked databases. The most frequent schedule is following:

  • Full Backup every 2 days

  • Incremental backup every 1 day

    Backup schedule

Minimum required space shows how much space is required in Temp folder(s) and in the cloud to backup chosen databases.

If the option Backup even when Windows user is not logged on is chosen, Window credentials should be configured for the Windows account under which the backups will run. The option is preferable for Exchange backups because usually these machines are switched on but the administrator is logged out from the operating system.

Backup schedule

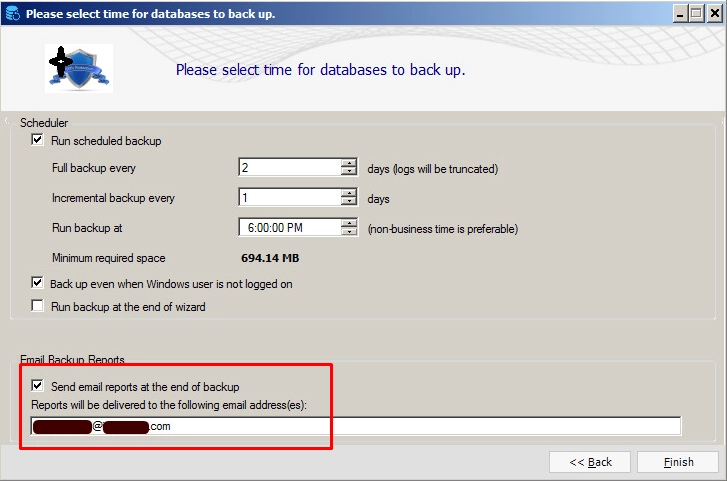

To receive backup reports after the backups, select Send email reports at the end of backup, and fill the email address where backup reports will be sent.

Backup reporting settings

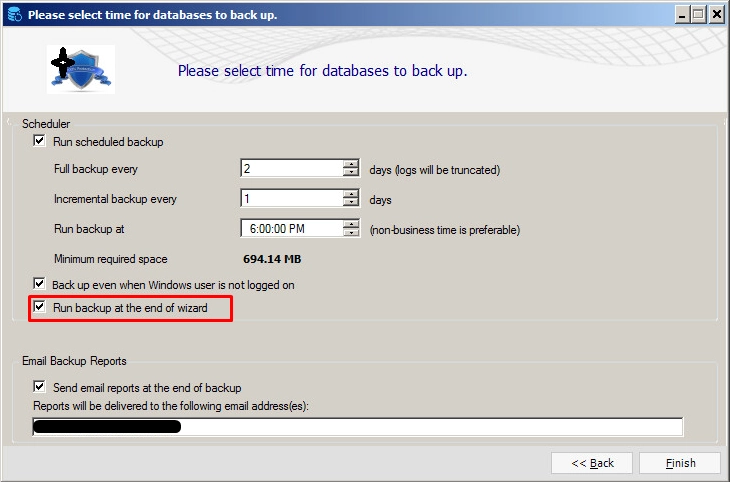

If it is needed to start the backup hereafter the completion of the wizard, the Run backup field at the end of wizard should be checked.

Back up immediately

When all necessary fields are filled, click Finish to complete the wizard.

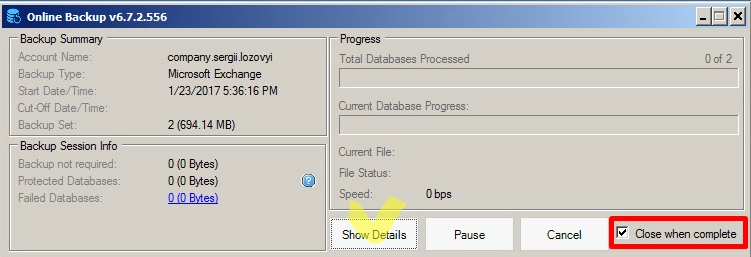

If Run backup at the end of wizard is selected, the backup will be started immediately and the following progress will appear regarding the backup of each chosen database (click Show Details and clear Close when complete) to see the details of the backup.

Backup progress

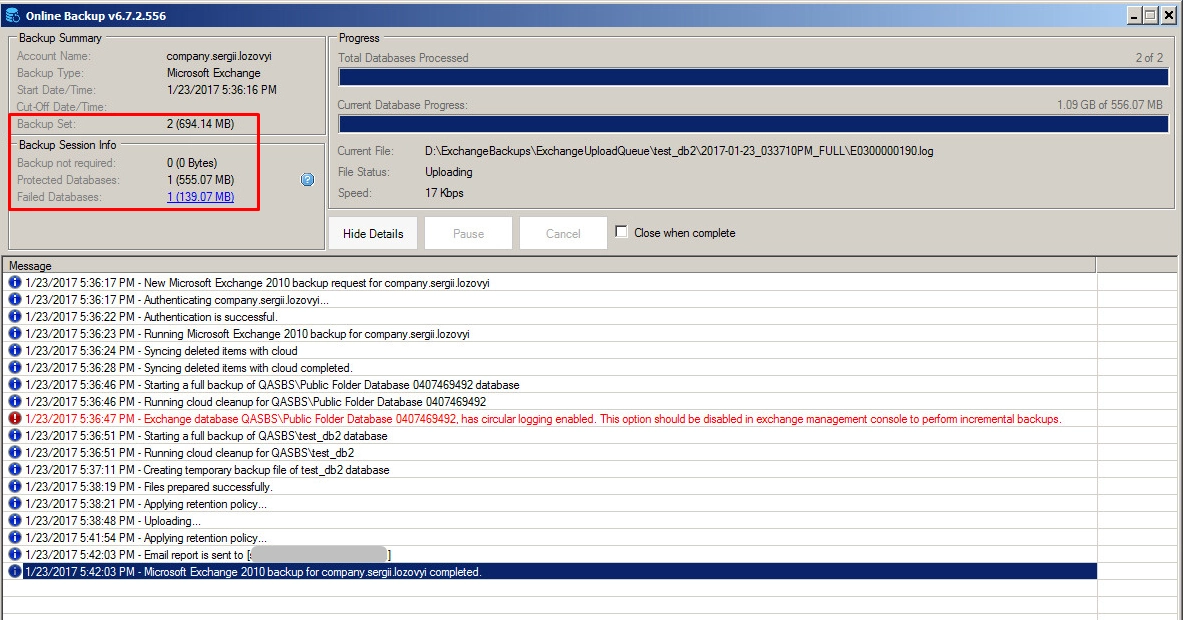

Backup progress details

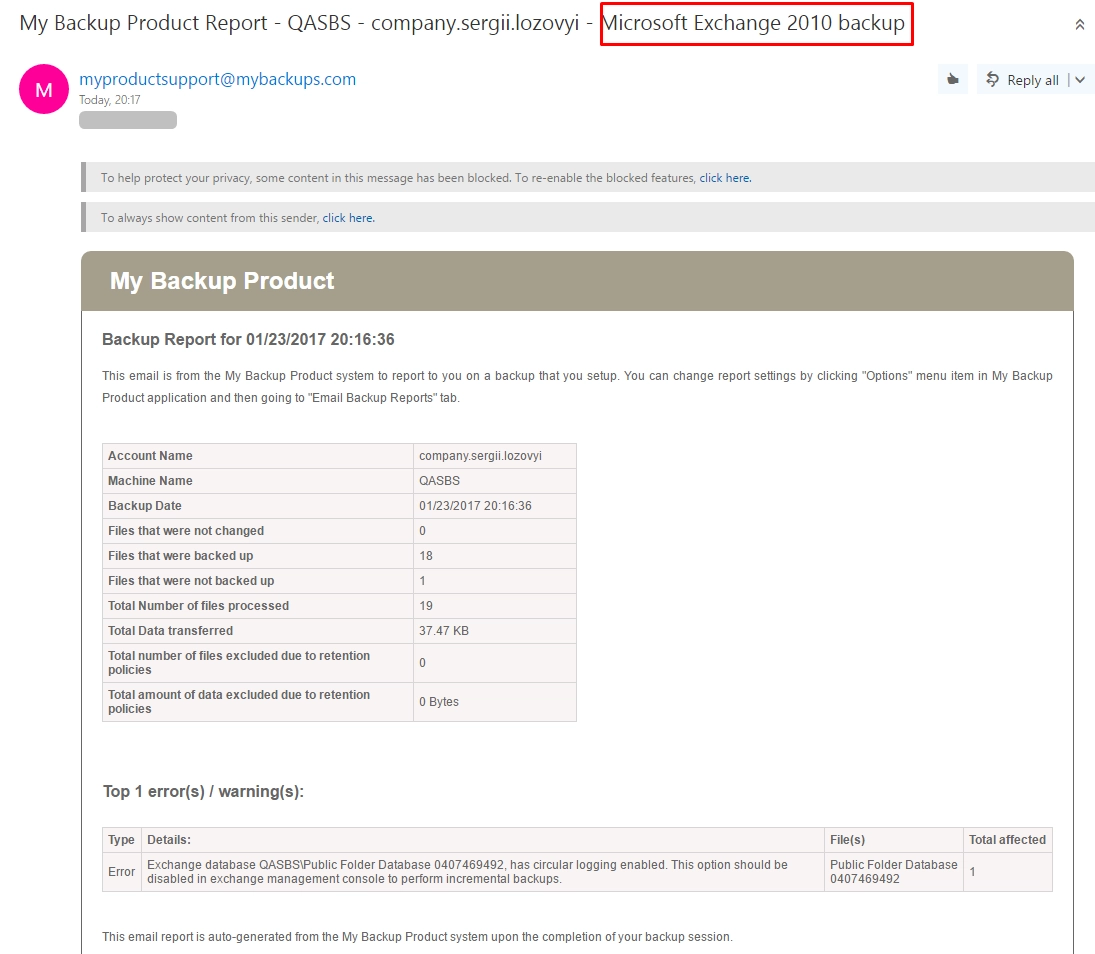

The following report is delivered to a configured email address after the backup completion.

Backup email report

You can check progress of the current backup, and to view details of the previous backups in the Infrascale Dashboard.

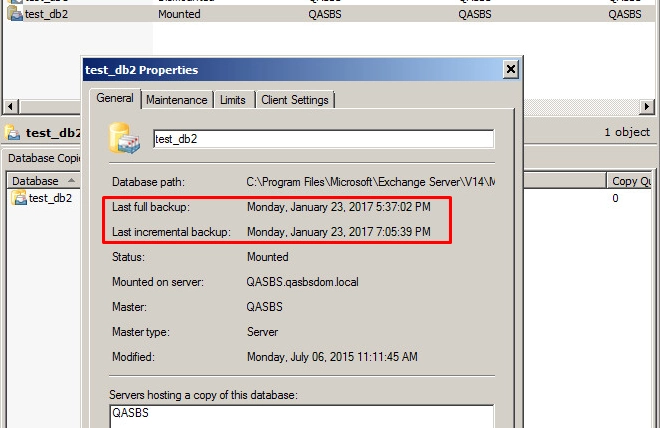

The following database properties are updated after taking Exchange backups with OBRM.

Database properties

Restore Exchange databases from the cloud

Use OBRM to restore the protected Exchange databases to the local machine.

  1. Click View\Restore to navigate to the data stored in the cloud.

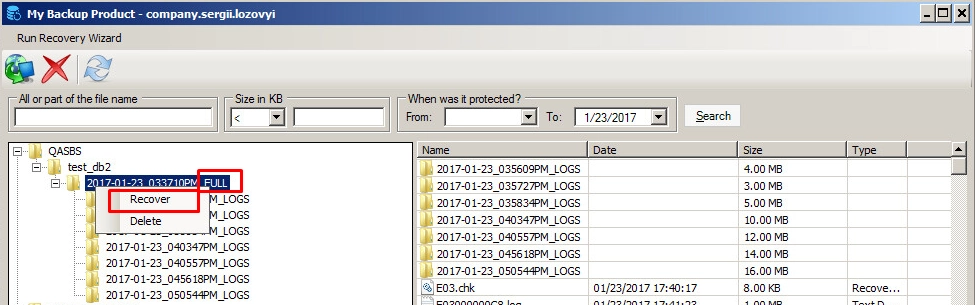

  2. To restore the database for a chosen date, restore its previous full backup (right-click Restore) with the subsequent incremental backup. When importing the database, it will be possible to choose the needed date.

    OBRM recovery wizard

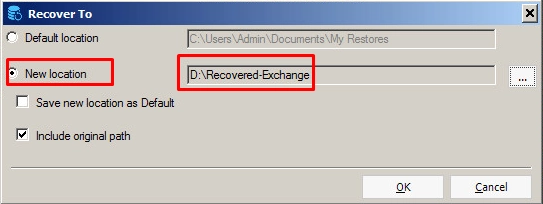

  3. Select the location to restore files to, and then click OK.

    Recovery destination

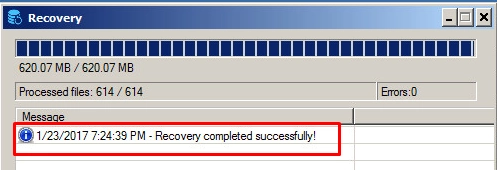

    Wait for the recovery completion.

    Recovery progress

Recover to a Microsoft Exchange server

Microsoft Exchange database recovery may be performed in different ways, such as:
