Monitor backup status within Cloud Application Backup in the Dashboard

Overview

To browse and view the monitoring data regarding the status of the latest backups of the cloud applications made with Infrascale Cloud Application Backup (CAB):

  1. Sign in to your account in the Dashboard.

  2. Go to Application Backup › Backup Status.

    Menu item

    The backup status monitoring page opens.

Information on the page is presented in the table format with the following columns:

ColumnDescription
CompanyName of the company CAB is turned on for
AccountUsername of the administrator account used to manage CAB for the company
DomainName of the protected domain the backup events relate to
Cloud AppCloud application the backup events relate to
TotalTotal number of backups
CompletedNumber of backups completed successfully
WarningNumber of backups completed with warning
FailedNumber of the failed backups
DurationDuration of the latest backup
SizeSize of the data included in the latest backup
Last Event DateDate and time of the latest backup
MutedIndication if the events—that is, alerts, notifications, reports, and so on—are suspended for the protected domain
ActionsList of the actions available to take on the protected domain

Consolidated view

View history

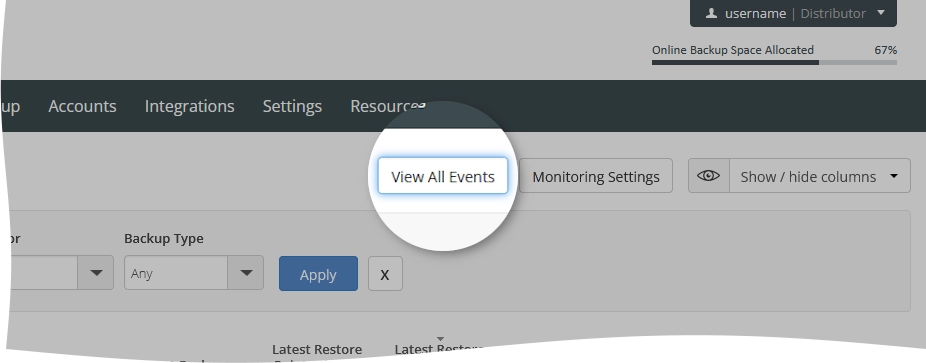

To browse and view the full history of backup events related to Infrascale Cloud Application Backup, as well as to Infrascale Backup & Disaster Recovery, and to Infrascale Cloud Backup, click View All Events.

See details about the backup history.

Backup history action

Actions

You can take actions on individual protected domains shown on the page. For this, click Actions (Actions icon) in the last column of a protected domain record, and then click the desired action to take.

ActionDescription
Mute DomainSuspend all events—that is, alerts, notifications, reports, and so on—for the protected domain
Remove Domain MonitoringTurn the monitoring off and remove monitoring events for the protected domain

Actions

By default, the system shows 20 protected domain records in the table per page. To browse over the protected domains, use the navigation buttons at the bottom of the page. Also, you can enter a number in the box, and then press Enter to go to the respective page.

Pagination

NameIconDescription
NextNext page iconGo to the next page
PreviousPrevious page iconGo to the previous page
LastLast page iconGo to the last page
FirstFirst page iconGo to the first page

Sort data

You can sort data in the table in ascending or descending order by:

  • name of the company CAB is turned on for (Company),

  • username of the administrator account used to manage CAB for the company (Account),

  • name of the protected domain the backup events relate to (Domain),

  • cloud application the backup events relate to (Cloud App),

  • date and time of the latest backup (Last Event Date), or

  • indication if the events are suspended for the protected domain (Muted).

For this, click the name of the corresponding column.

Sort data

Filter data

You can filter data in the table by:

  • partner (Company/Reseller, for distributors only),

  • company (Company/Reseller, for distributors and partners),

  • username of the administrator account used to manage CAB for the company (Account),

  • name of the protected domain the backup events relate to (Domain), and

  • cloud application the backup events relate to (Cloud App).

For this, set the desired filters on the toolbar, and then click Apply.

Filter data

To reset all filters at once, click Clear (Clear filters icon) next to the filters on the toolbar.

Export data

You can export all data (in all visible and hidden columns) in the table to an XLS spreadsheet. For this, click Export to Excel on the lower right, and then save the file with the exported data to the desired location.

Export data
