Asset monitoring within ConnectWise Automate integration

Asset monitoring implies automatic discovery of the Backup & Disaster Recovery appliances, monitoring of their system, connection, and replication data.

After you install the Infrascale plug-in, it scans the network via SNMP for the available appliances, and then queries them for the relevant data.

To view and manage the available appliances in ConnectWise Automate:

1. On the ConnectWise Automate Server, open Automate Control Center.

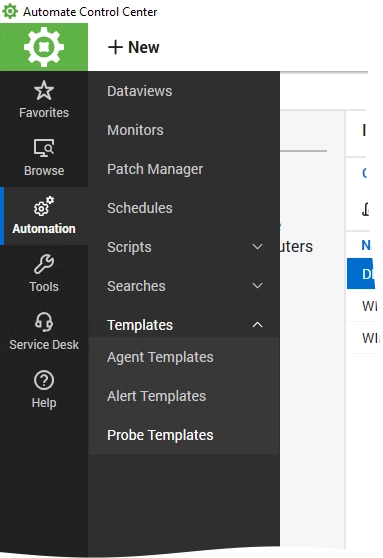

2. Go to Automation › Templates › Probe Templates.



3. In the Probe Template Management window:

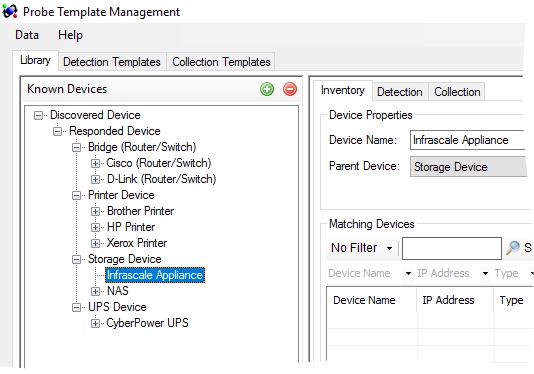

   • On the Library tab, click Infrascale Appliance to view the list of all detected appliances.

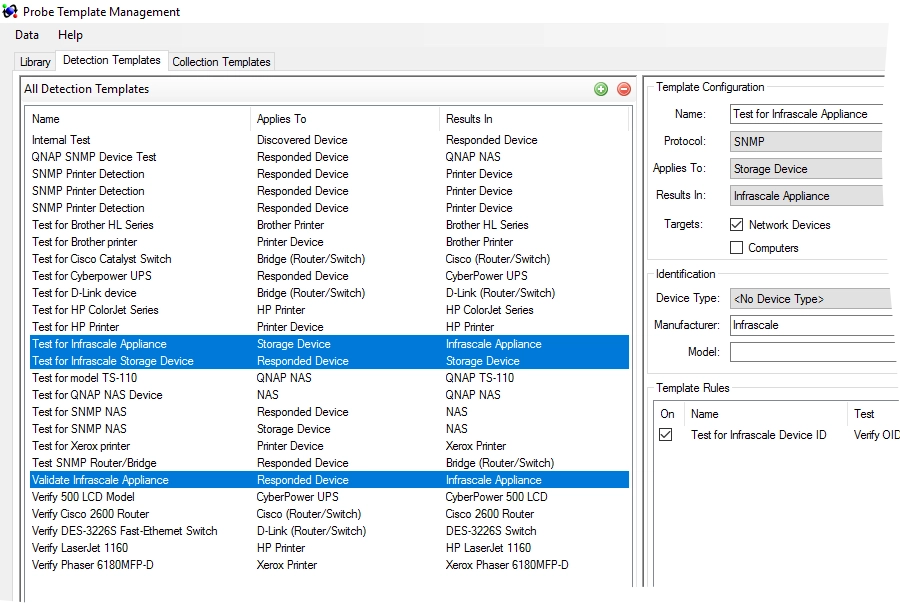

   • On the Detection Templates tab, you can view and manage the following templates used to detect appliances on the network:

     • Test for Infrascale Appliance

     • Test for Infrascale Storage Device

     • Validate Infrascale Appliance

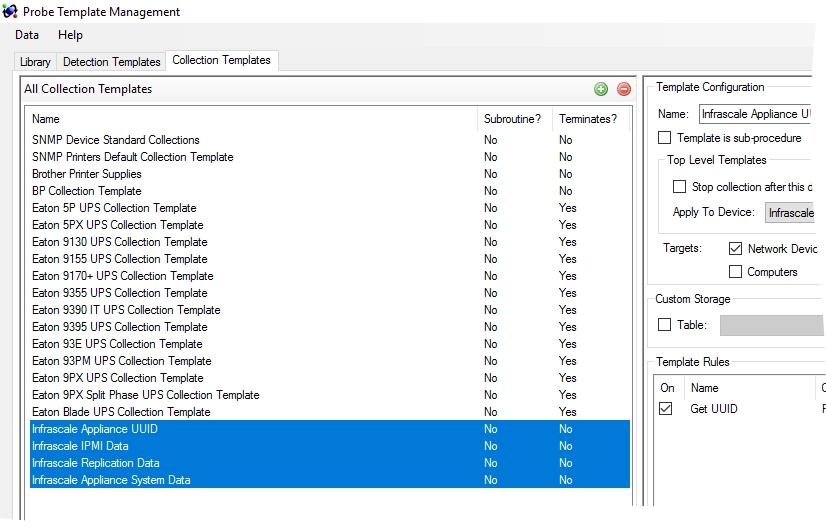

   • On the Collection Templates tab, you can view and manage the following templates used to retrieve data from the detected appliances:

     • Infrascale Appliance UUID

     • Infrascale IPMI Data

     • Infrascale Replication Data

     • Infrascale Appliance System Data
