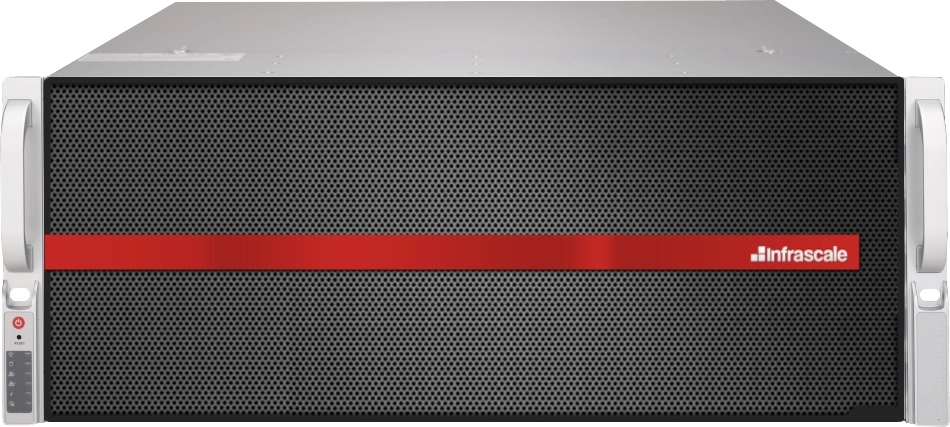

Backup & Disaster Recovery appliance 4580
Available for purchase. Supported in terms of both hardware and software.


Â
 |  |
---|---|
End-of-life | Â |
End of sales | TBD |
Hardware warranty 1 | Standard – 3 years from the date of purchase. Extended – 5 years from the date of purchase. |
End of software support 2 | TBD |
Processor | Â |
Model | Intel Xeon Gold 5317 |
Base frequency | 3Â GHz |
Number of cores | 12 |
Upgrade | Up to 24 cores |
Memory | Â |
Size | 256Â GB |
Type | DDR4, ECC, REG |
Frequency | 3200Â MHz |
Upgrade | N/A |
Storage | Â |
Catalog drive capacity | 960Â GB, SSD |
Data drive capacity (raw) | 96Â TB, HDD, 7200Â rpm |
RAID level | 6 |
RAID capacity (total) | 88Â TB |
RAID capacity (usable) | 81.95Â TB |
Hot-swap drive bays | 24 |
Ports | Â |
Ethernet | 2 × 1 GbE |
IPMI | Yes |
Cooling | Â |
Processor | Active heat sink |
Chassis | 2 fans @ 6700Â rpm each; 3 fans @ 7000Â rpm each |
Power supply | Â |
Output | 1200Â W (redundant) |
Voltage | 100–240 V |
Frequency | 50–60 Hz |
Physical specs | Â |
Chassis | 4U |
Width | 17.2Â in. |
Depth | 26Â in. |
Height | 7Â in. |
Weight | 75Â lb. (case) |
Hardware warranty applies as follows:
If warranty is active, we replace hardware parts at our expense.
If warranty has ended, but hardware parts are still commercially available, we may replace them at your expense (including shipping).
If warranty has ended and hardware parts are not commercially available, we recommend hardware refresh.
Unless there is an active, previously signed support contract. ↩
