    Backup & Disaster Recovery appliance 2700

    • Summary:Specifications and features of the Backup & Disaster Recovery appliance — model 2700.
    • 1 min read

    Not available for purchase. Not supported.

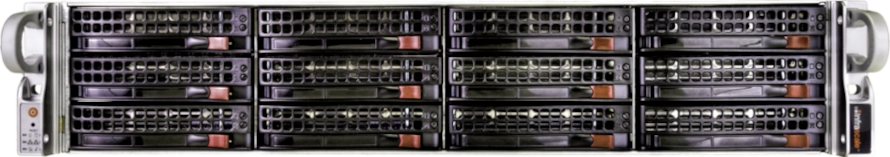

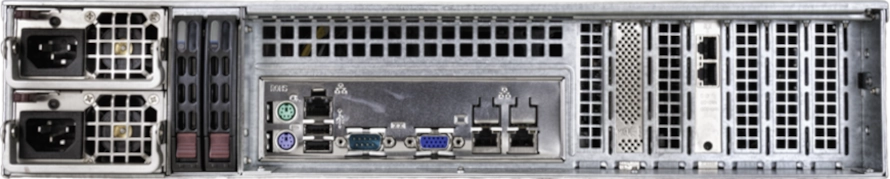

    Appliance view 1 Appliance view 2


    End-of-life
    End of sales Dec 31, 2016
    End of hardware serviceability 1 2 Dec 31, 2020
    End of software support 1 Dec 31, 2021
    Processor
    Model Intel Xeon E3-1275 v2
    Base frequency 3.5 GHz
    Number of cores 4
    Upgrade N/A
    Memory
    Size 32 GB
    Type DDR3, ECC
    Frequency 1600 MHz
    Upgrade N/A
    Storage
    Catalog drive capacity 240 GB, SSD
    Data drive capacity (raw) 12 TB, HDD, 7200 rpm; or
    24 TB, HDD, 7200 rpm; or
    36 TB, HDD, 7200 rpm; or
    48 TB, HDD, 7200 rpm; or
    72 TB, HDD, 7200 rpm
    RAID level 10
    RAID capacity (total) 6 TB, or
    12 TB, or
    18 TB, or
    24 TB, or
    36 TB
    RAID capacity (usable) 5.58 TB, or
    11.17 TB, or
    16.76 TB, or
    22.35 TB, or
    33.52 TB
    Hot-swap drive bays 12
    Ports
    Ethernet 2 × 1 GbE
    IPMI Yes
    Cooling
    Processor N/A
    Chassis 3 fans @ 7000 rpm each
    Power supply
    Output 920 W (redundant)
    Voltage 100–240 V
    Frequency 50–60 Hz
    Physical specs
    Chassis 2U
    Width 17.2 in.
    Depth 25.5 in.
    Height 3.5 in.
    Weight 52 lb. (case)

    1. Unless there is an active, previously signed support contract. ↩ ↩2

    2. Hardware support may be limited if replacement parts are not commercially available. ↩
