    Backup & Disaster Recovery appliance 1200

    • Summary:Specifications and features of the Backup & Disaster Recovery appliance — model 1200.
    • 1 min read

    Not available for purchase. Supported in terms of software. Not supported in terms of hardware.

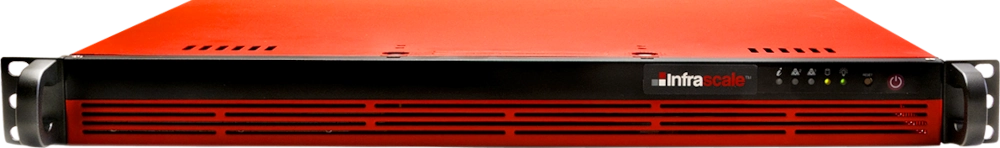

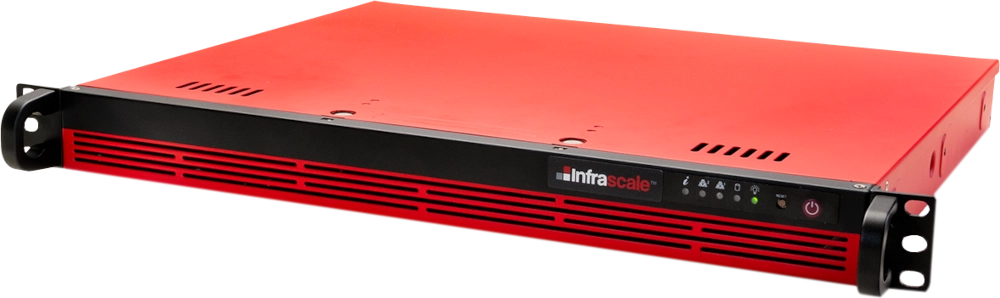

    Appliance view 1 Appliance view 2


    End-of-life
    End of sales Jul 1, 2018
    Hardware warranty 1 Standard – 3 years from the date of purchase.
    Extended – 5 years from the date of purchase.
    End of software support 2 Dec 31, 2023
    Processor
    Model Intel Core i3-4370
    Base frequency 3.8 GHz
    Number of cores 2
    Upgrade N/A
    Memory
    Size 16 GB
    Type DDR3, ECC
    Frequency 1600 MHz
    Upgrade N/A
    Storage
    Catalog drive capacity 120 GB, SSD
    Data drive capacity (raw) 4 TB, HDD, 7200 rpm
    RAID level N/A
    RAID capacity (total) N/A
    RAID capacity (usable) N/A
    Hot-swap drive bays N/A
    Ports
    Ethernet 2 × 1 GbE
    IPMI Yes
    Cooling
    Processor Passive heat sink
    Chassis 1 fan @ 3200 rpm
    Power supply
    Output 200 W
    Voltage 100–240 V
    Frequency 50–60 Hz
    Physical specs
    Chassis 1U
    Width 16.8 in.
    Depth 14 in.
    Height 1.7 in.
    Weight 11 lb. (case)

    1. Hardware warranty applies as follows:

      • If warranty is active, we replace hardware parts at our expense.

      • If warranty has ended, but hardware parts are still commercially available, we may replace them at your expense (including shipping).

      • If warranty has ended and hardware parts are not commercially available, we recommend hardware refresh.

      ↩

    2. Unless there is an active, previously signed support contract. ↩
