Scheduled Jobs subtab

On this page

Overview

Backup & Disaster Recovery appliance uses a schedule to determine when a given client will be backed up. You can define as many schedules as you need. There are no restrictions on how many clients can use a specific schedule.

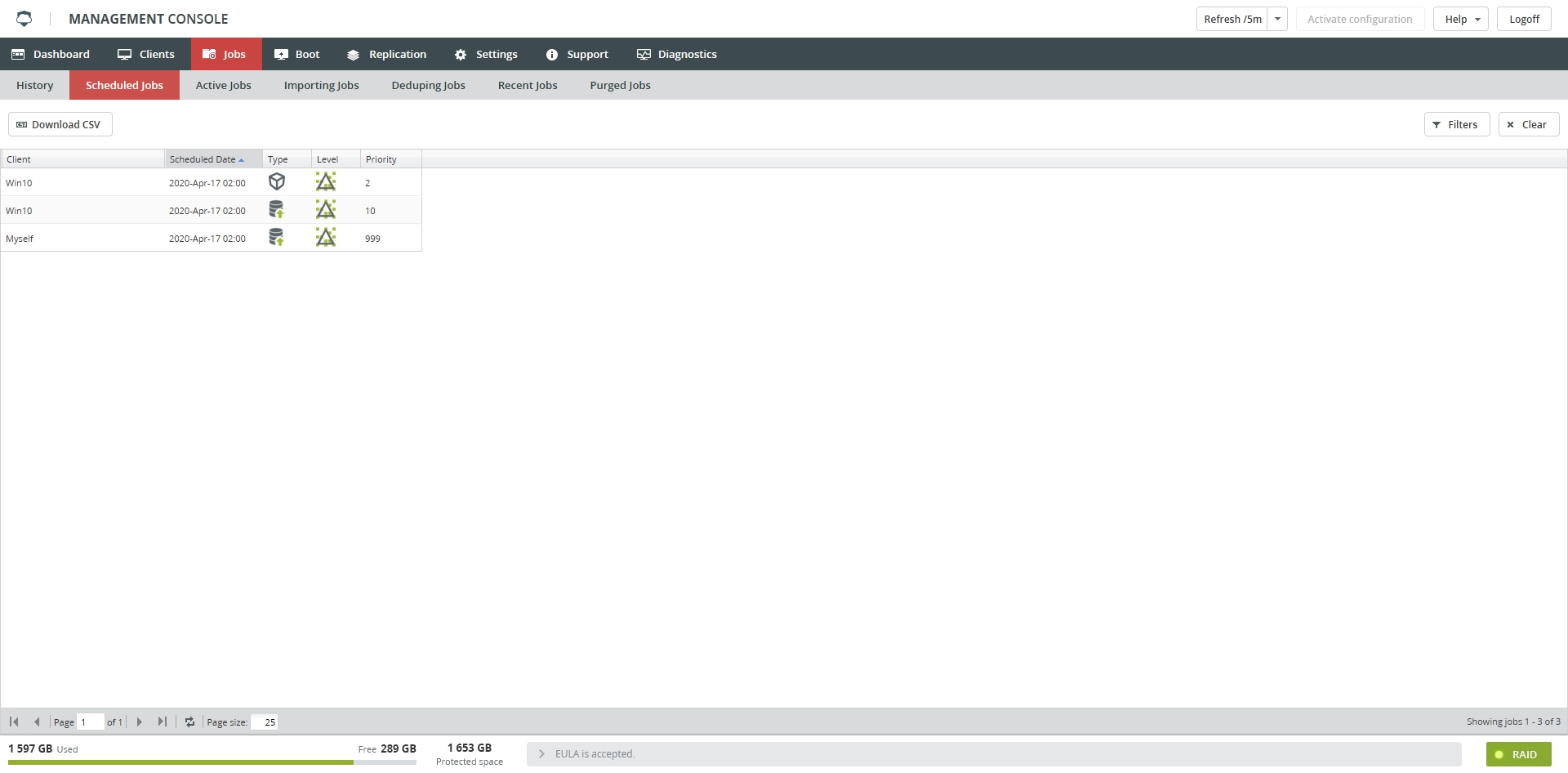

The Scheduled Jobs subtab lists all jobs scheduled to run within the next 24 hours.

Scheduled Jobs subtab

Information

Information on the Scheduled Jobs subtab is presented in the table format with the following columns:

Column Value Description
Client   Name of the client the job belongs to
Scheduled Date   Date and time the job is scheduled to start
Type   Type of the job
  Bare-metal backup job icon Bare-metal backup
  DR image backup job icon DR image backup
  File and folder backup job icon File and folder backup
  Hyper-V VM backup job icon Hyper-V VM backup
  VMware VM backup job icon VMware VM backup
  Restore job icon Restore
Level   Backup level of the job
  Full backup level icon Full backup
  Synthetic full backup level icon Synthetic full backup
  Differential backup level icon Differential backup
  Incremental backup level icon Incremental backup
Priority   Priority of the job

Actions

All actions on the Scheduled Jobs subtab are available on the toolbar.

Actions toolbar

Action Description
Download CSV Save data shown in the table locally in a CSV file

Filtering

You can refine the list of jobs using filters.

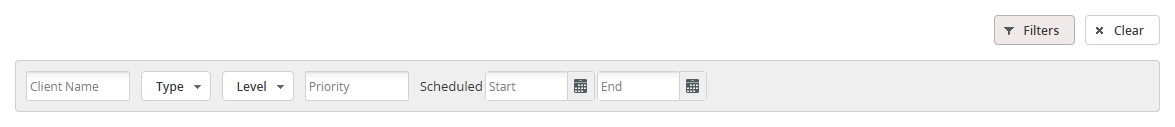

To show all filters available on the Scheduled Jobs subtab, click Filters on the toolbar.

Filters
